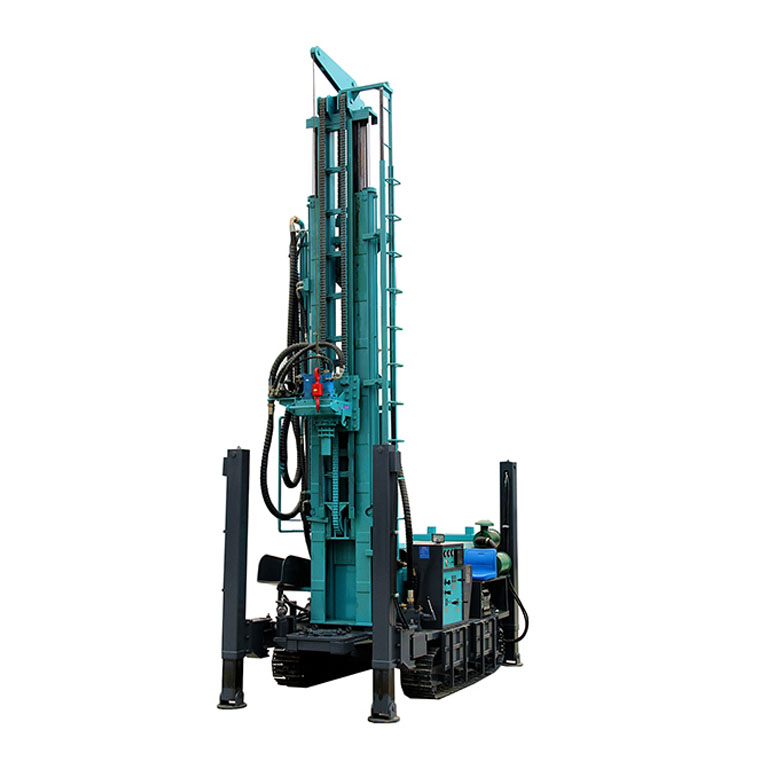

MX450 Water Well Drilling Rig

PRODUCT PARAMETERS

Product Description: The MX450 Water Well Drilling Rig is a great water well drilling rig option that is reliable, efficient and functional. Its rugged construction, user-friendly design and adaptability to meet the needs of water well drilling projects in different environments make it ideal for a variety of water well drilling applications. Choosing the MX450 ensures that you complete your drilling operations with precision, efficiency and minimal environmental impact.
Description
FAQs
Request A Quote

Description

  1. Product Features:

Efficient Drilling Performance

  • The MX450 is equipped with a high-efficiency rotary head capable of drilling through a variety of soil and rock types.
  • It supports drilling depths of up to 450 meters, with a diameter range of 100mm to 220mm, making it ideal for medium-depth water wells.

Advanced Hydraulic System

  • Features a high-precision hydraulic system that enhances control and ensures smooth operation.
  • The hydraulic system is engineered for low maintenance, improving uptime and reducing operational costs.

Compact and Portable Design

  • Built with a lightweight yet sturdy chassis, the MX450 is easy to transport and deploy in remote or confined locations.
  • Modular components simplify the assembly and disassembly process for increased convenience.

Durable Construction

  • Made with corrosion-resistant and high-strength materials to withstand tough working conditions.
  • Reinforced structural elements provide stability and longevity, even in challenging terrains.

Energy Efficiency

  • Equipped with an eco-friendly, fuel-efficient engine that reduces emissions and operating costs.
  • The intelligent energy management system optimizes power usage for sustainable operations.

Enhanced Operator Comfort

  • The control panel is ergonomically designed for intuitive operation and monitoring.
  • Vibration-dampening technology minimizes operator fatigue during extended drilling sessions.

    2. Product Application

    The MX450 Water Well Drilling Rig is suitable for:

    • Rural and urban water well projects.
    • Irrigation systems for agricultural lands.
    • Shallow geothermal well installations.
    • Exploratory drilling for geological and mining purposes.

    3. Advantages of the MX450

    • Cost-Effective: Its efficient operation and low maintenance design result in reduced overall project costs.
    • Flexible Configuration: Compatible with a variety of drilling tools and accessories for customized performance.
    • Reliable Support: Supported by a dedicated team of experts and a comprehensive service network.

    4. Product Parameters:

    MX450 Water Well Drilling Rig
    The weight(T)  9.2Drill pipe diameter(mm)Φ89  Φ102
    The hole diameter(mm)140-350Drill pipe length(m)1.5m  2.0m  3.0m  6.0m
    Drilling depth(m)450Rig lifting force(T)25
    One-time advance length(m)6.6Rapid rise speed(m/min)20
    Walking speed(km/h)2.5Fast feeding speed(m/min)40
    Climbing angles(Max.)30Width of loading(m)2.8
    Equipped capacitor(kw)110Hoisting force of winch(T)2
    Using air pressure(MPA)1.7-3.5Swing torque(N.m)7000-9500
    Air consumption(m³/min)17-36Dimension(mm)6150×2200×2600
    Swing speed(rpm)30-135Equipped with hammerMedium and high wind pressure series
    The penetration efficiency(m/h)15-35High leg stroke(m)1.6
    The engine brandYuchai engine
